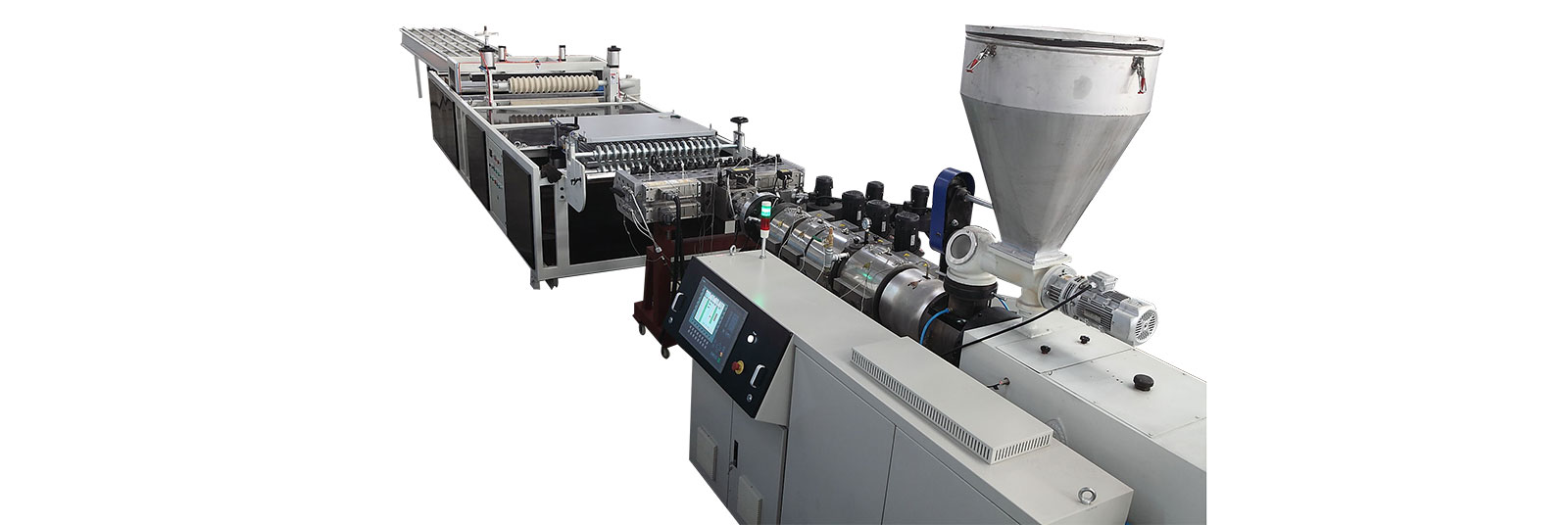

PVC Corrugated Tile Extrusion Line

Special design of screw, which ensures material perfect plasticizing and lower formulation cost is suitable for high fill formula;

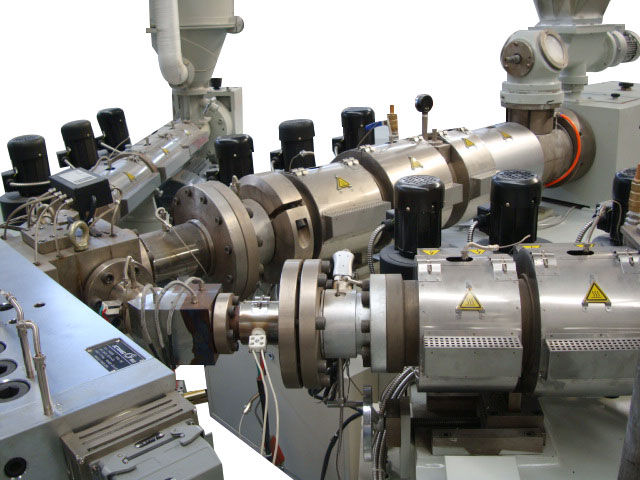

Co-extruder equipped with dehumidifying and drying system can be applied to produce PMMA/ASA composite material, which ensures tile with high performance and quality ;

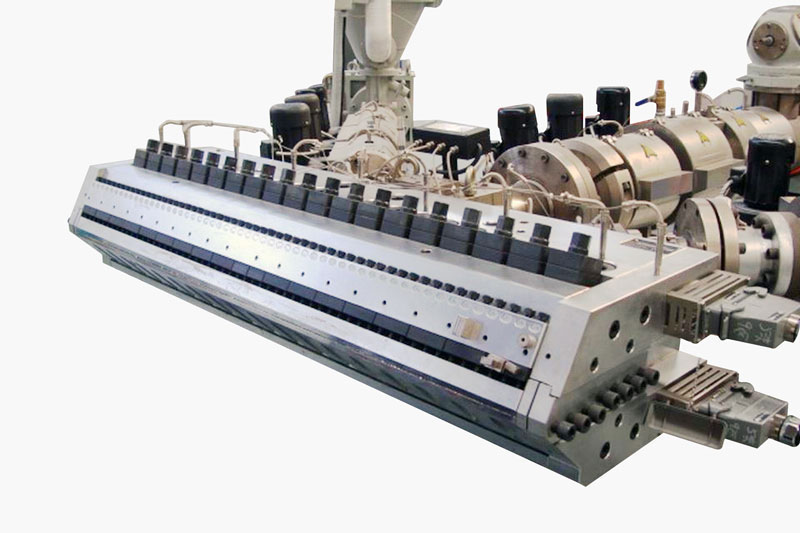

Hanger style T-die is applied to produce single PVC melt multi-layer material or multi-layer compound material, its flow surfac adopts electrochromism treatment, which ensures excellent liquidity and good anticorrosion, heat-resisting and wear-resisting performance;
Feeding block mostly applied in multi-layer compound process. It has Several structures,such as A/B, A/B/A, A/B/C etc. for making perfect composite tiles;

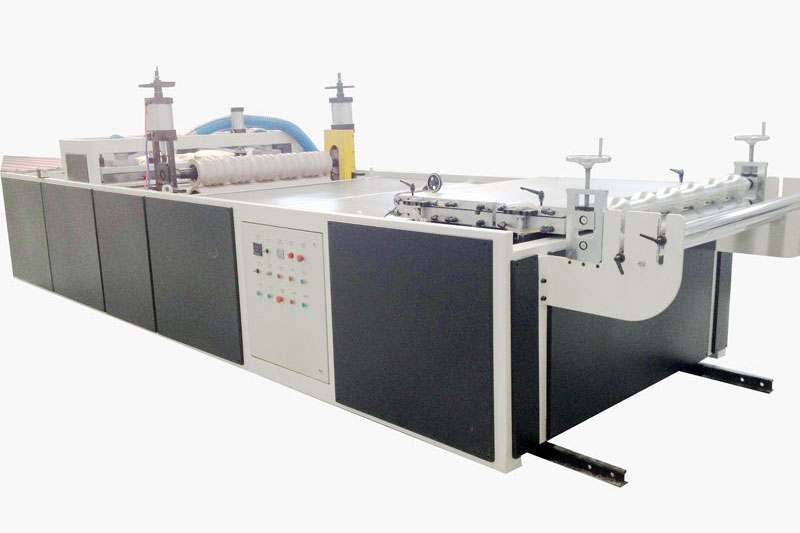

Calibration forming table includes three parts: calibration mold, haul off and cutter, Forming mould is made of Up and Down moulds, flow surface adopt polish and electrochromism treatment, which can ensure excellent liquidity and good anticorrosion, heat-resisting, wear-resisting performance;
The channel design is S shape to increases contacting surface of mould, which ensures faster heating transfer and quickly cooling calibration. In order to higher stable hauling, the shape of rubber roller(haul off) designs according to final product, the cutter adopt sawing type and the shape of blade designs according to the tile, which ensuring flat and chip-free cutting.
