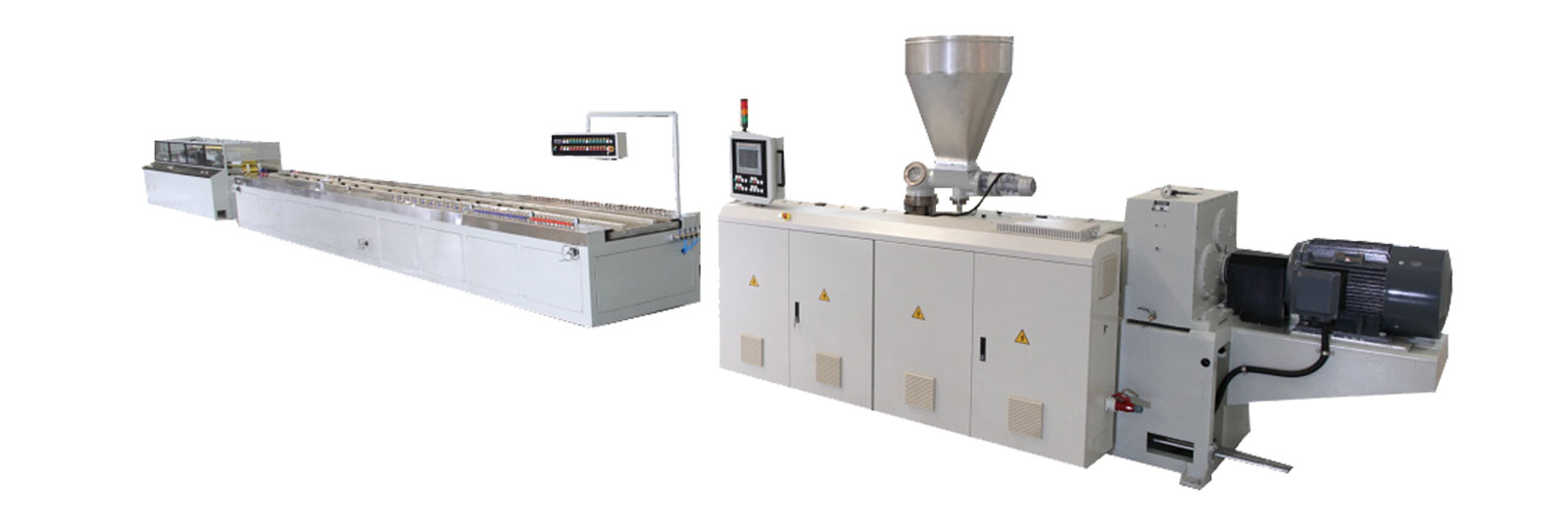

PVC/PE/PP wood-plastic board & profile production line

Wood-plastic products is as a substitute for traditional wood products, greatly reduce the demand for wood. According to the demand, Acemech specially designed the calibration forming technology for PVC wood plastic foam, low foam / no foam and cold push solution for PE/PP wood plastic. To pursue a longer using life of wood products, the surface of WPC products with a protective layer through coextrusion technology comes into being. In addition, we are devote to the provision of the turn-key solution, including upstream machine, such as wood crusher, pulverizer and drying equipment, WPC compsite mixing & pelletizing system, and downstream, such as embossing, brushing, sanding, lamination, hot stampting transfer, printing, Waste crushing, grinding and recycling equipment for different wide products.

Product Category

Contact Us

Unique bi-metallic design of the barrel & screw for WPC profile extrusion ensure good plasticization and high wear-resistant;
Using Germany and domestic high-quality steel for vacuum calibration and cold-pushing die head ensure rapid cool, and achieve efficient and stable production;
Calibration table with pressure and water flow inspection makes a precise control Haul-off adopts an independent motor driving to ensure stable and reliable traction;
Saw cutter leads fast cutting, smooth incision and accurate length, collecting and re-use saw dust;
Combined type haul-off and cutter design is more compact and economical;
Matching with punching, embossing, brushing, sanding, lamination, hot stamping, printing machine achieves good synchronize and automatic control.

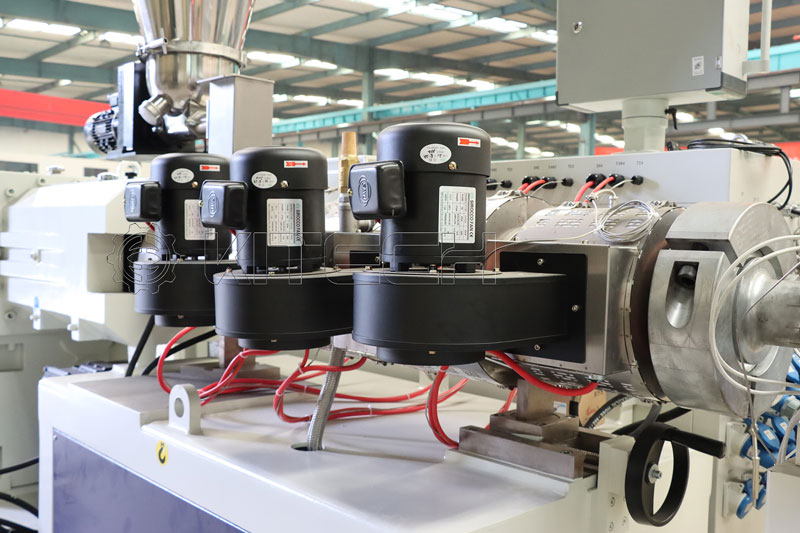

Conical twin screw extruder

38D LD ratio
Barrier zone of screw
Grooved channel feeding

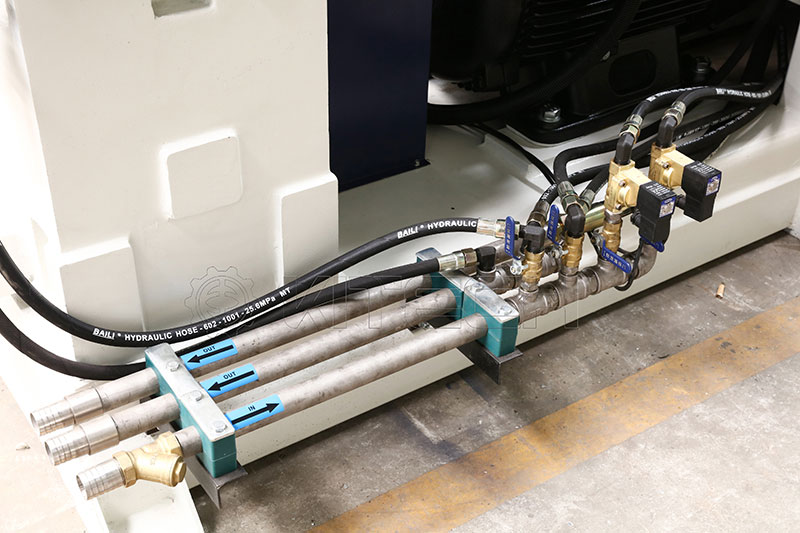

Copper bush of water jacket

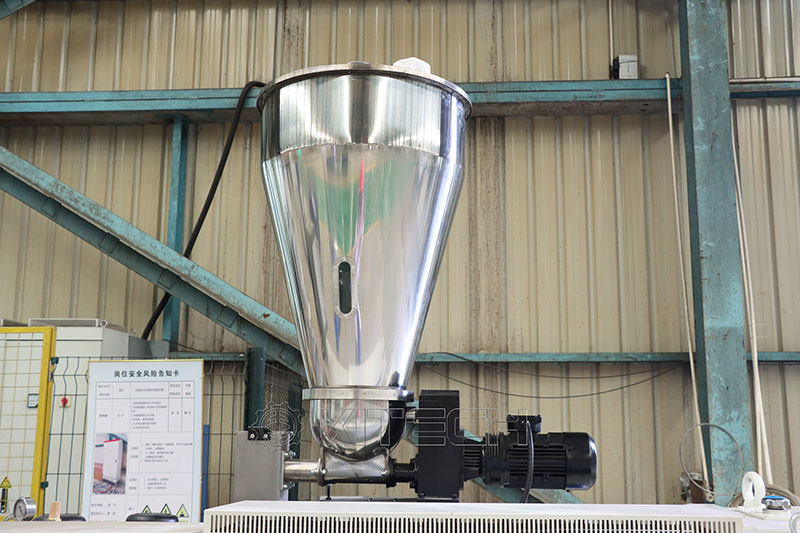

Gravimetric dosing feeder

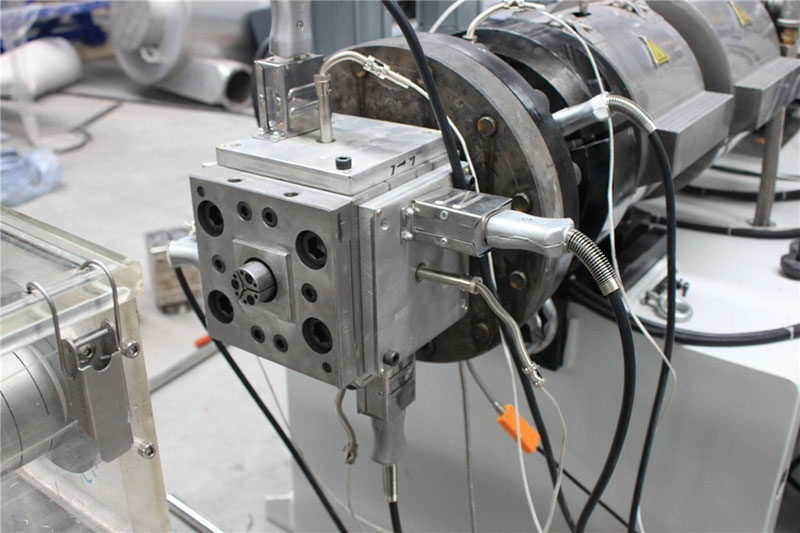

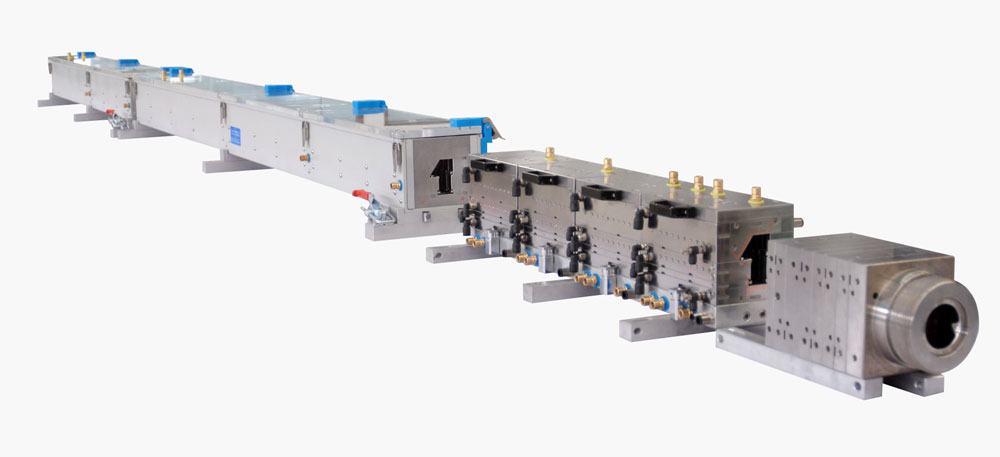

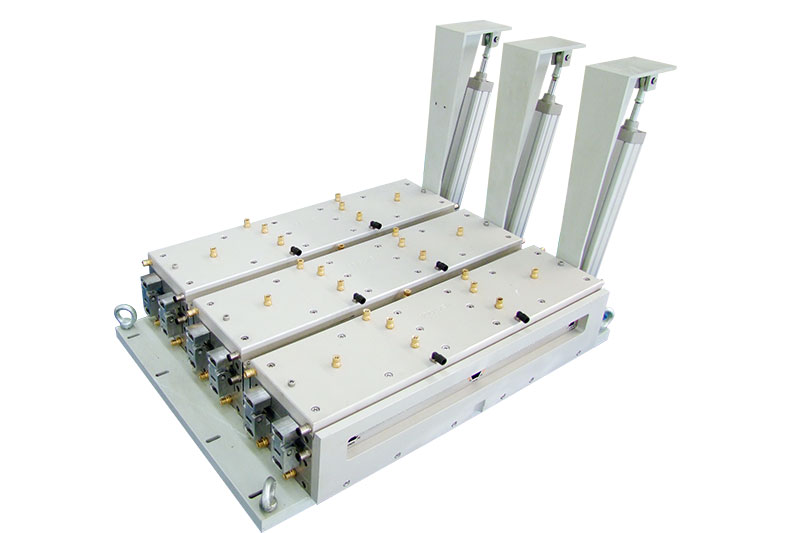

Mould

• 40Cr material
• Complete set include extrusion die head, Slotting & water ring type calibration sleeve
• Apply to PE/PP, co-extrusion, multi-layers co-extrusion etc

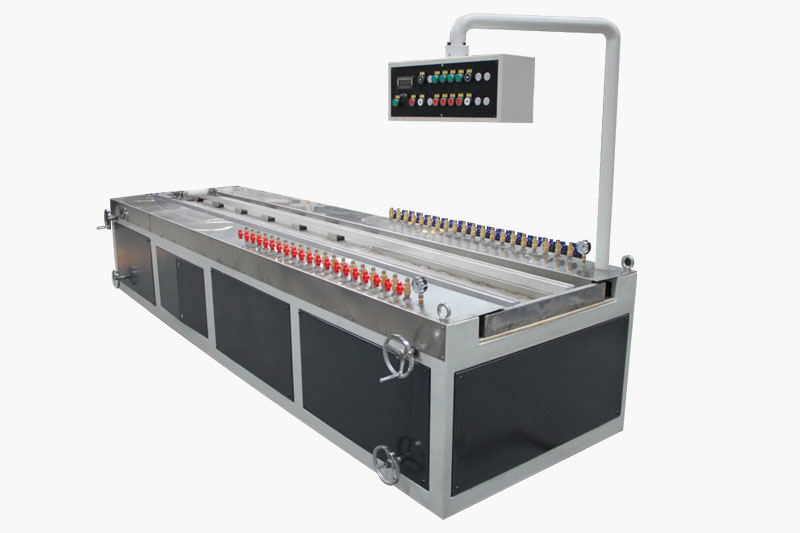

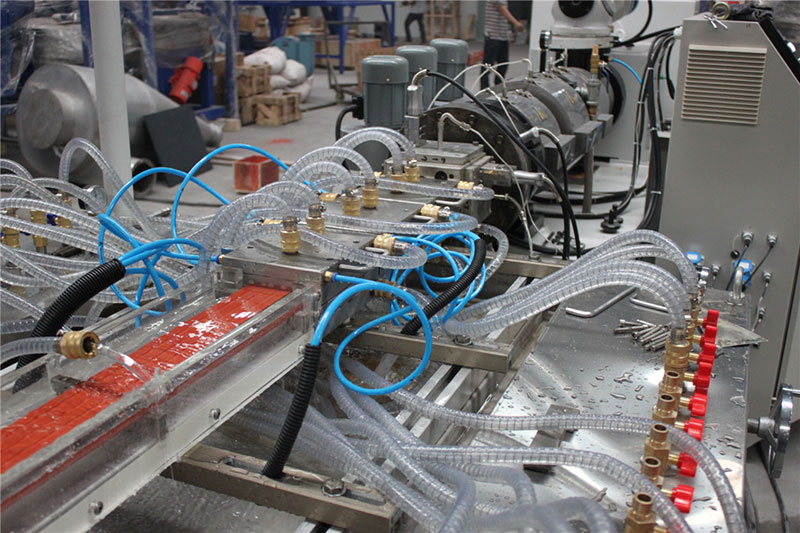

Vacuum Cooling Tank

The cutting machine, typically synchronized with the extrusion speed, is used to precisely cut the extruded pipes or profiles into individual sections of the desired length.

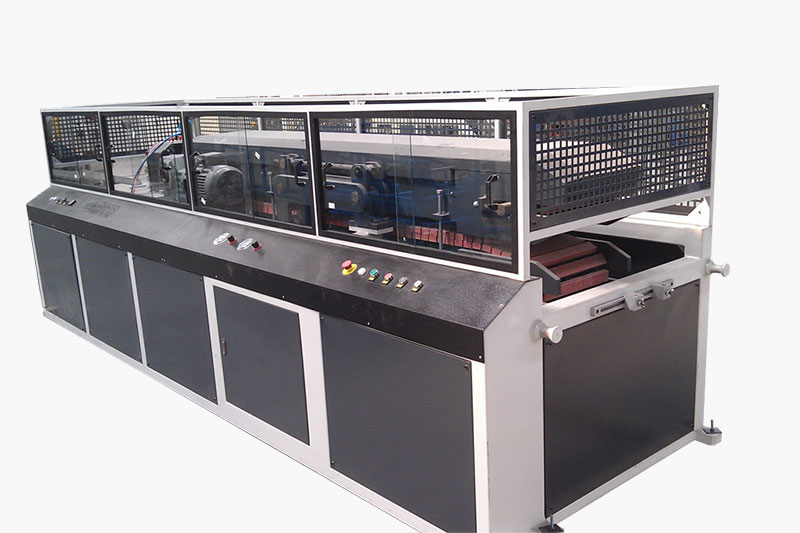

Haul-off Machine

The haul-off machine, also known as a puller or caterpillar, is a device used to pull the extruded pipes or profiles through the production line at a consistent speed and tension, preventing deformation and maintaining dimensional accuracy.

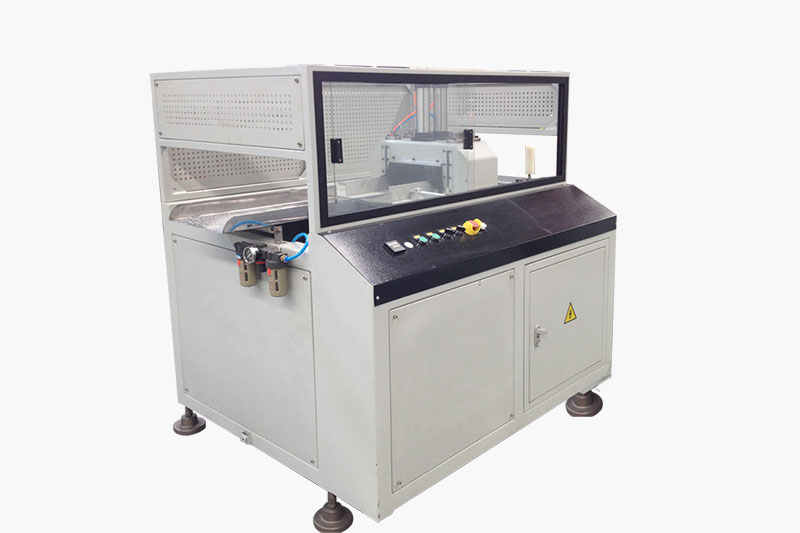

Cutter

The cutting machine, typically synchronized with the extrusion speed, is used to precisely cut the extruded pipes or profiles into individual sections of the desired length.

Stacker

• Stainless steel 304 as touching material
• Discharge driving by air cylinder

Model	Profile Width(mm)	Extruder	Max. Capacity(kg/h)	Motor Power(kW)
YF108	108	SJZ51/105	80-120	18.5
YF180	180	SJZ51/105 or SJZ55/110	80-120/120-150	18.5/22
YF240	240	SJZ65/132	175-250	37
YF300	300	SJZ65/132	175-250	37
YF400	400	SJZ65/132 or SJZ80/156	175-250/250-350	37/55
YF600	600	SJZ65/132 or SJZ80/156	175-250/250-350	37/55
YF800	800	SJZ80/156	280-350	55
YF1220	1220	SJZ80/156 or SJZ92/188	300-350/600-700	75/110
